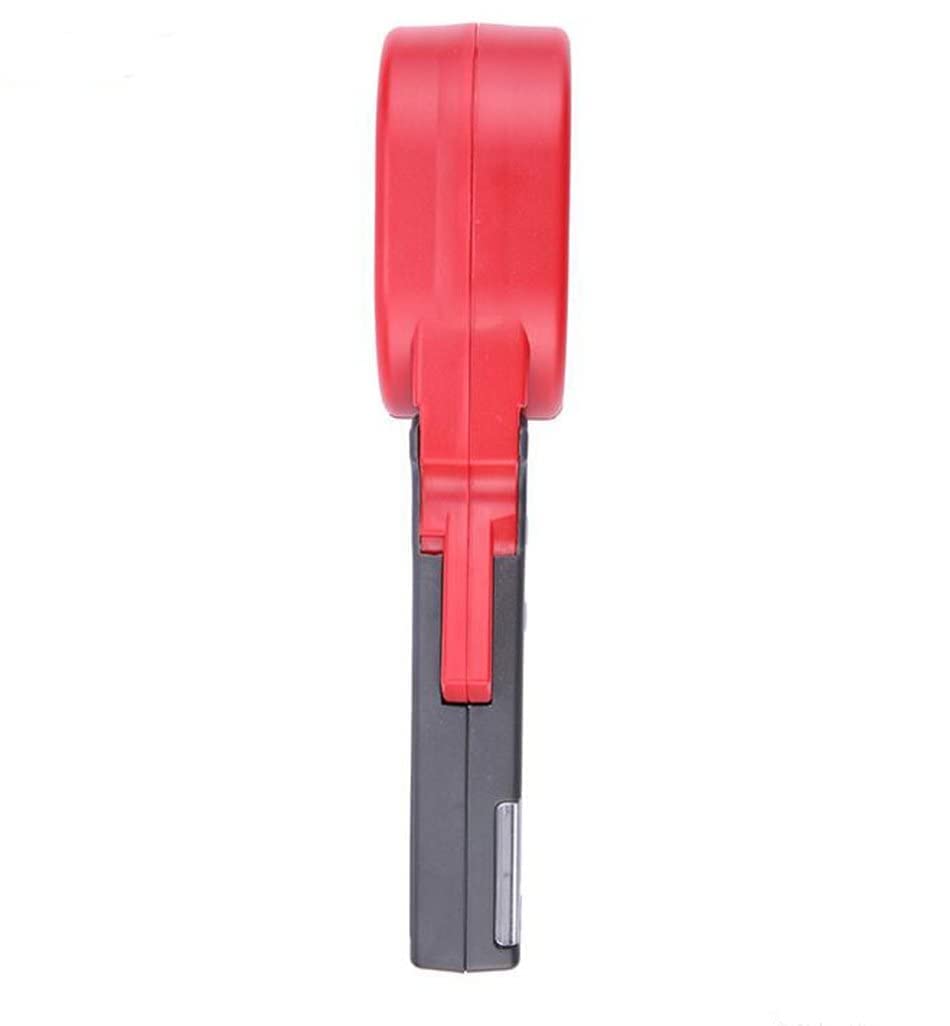

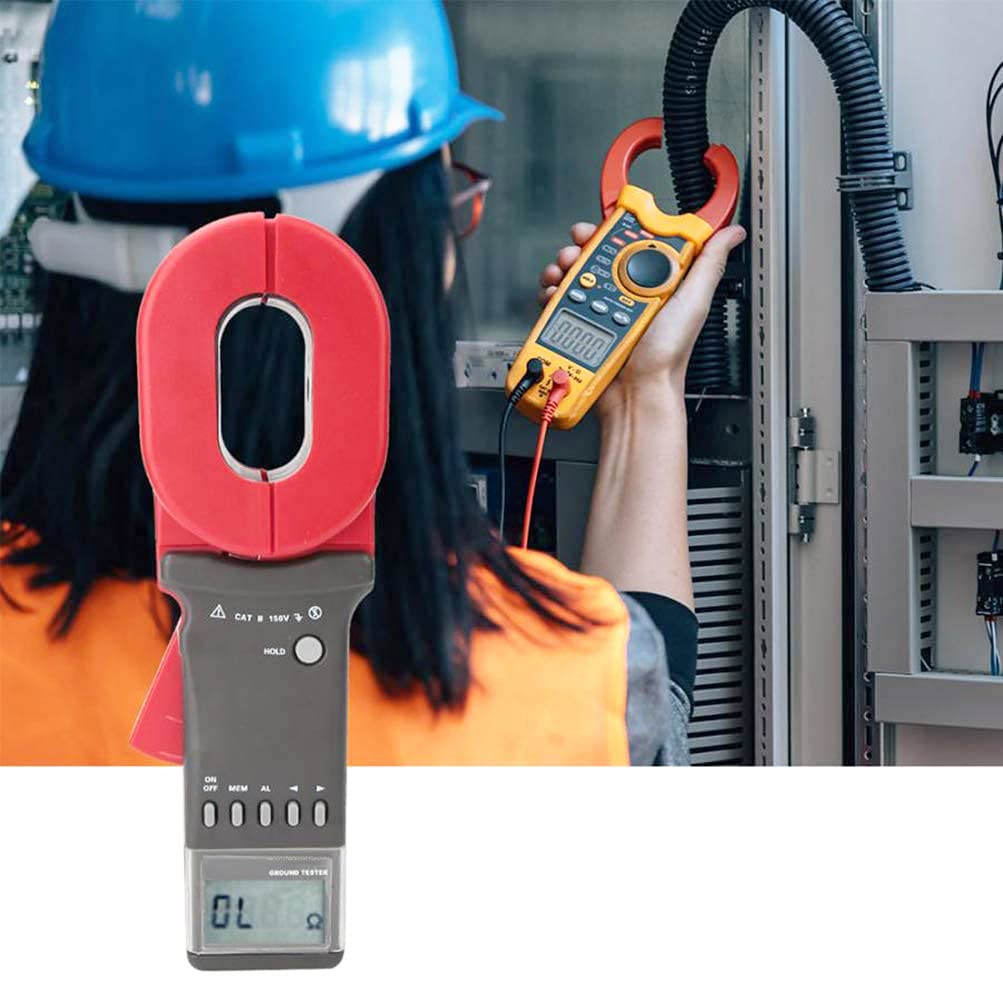

Clamp On Ground Resistance Tester Earth Resistance Meter Grounding Resistance Measurement Device with Resistance Range 0.01 to 200Ω Alarm Function 4 Digits LCD Display
Product details
| Management number | 210913473 | Release Date | 2026/04/04 | List Price | $124.40 | Model Number | 210913473 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
YFYIQI Clamp On Ground Resistance Tester Earth Resistance Meter Grounding Resistance Measurement Device with Resistance Range 0.01 To 200Ω Alarm Function 4 Digits LCD Display Specification: ❤Clamp Size:65mm×32mm ❤LCD Size:4 Digits LCD display, Screen : 47mm×28.5mm ❤Range:0.010Ω~200Ω ❤Resolution:0.001Ω ❤Accuracy:±1%±0.01Ω ❤Data Storage: 99 sets ❤Data Upload Function:RS232 Interface (Optional,Please contact us if you need) ❤Auto Power-off:Automatically power off after 5 minutes without any operate ❤Power Consumption: ≤50mA， continuously working for 30 hours ❤Alarm threshold setting range:Resistance：1~199Ω ❤Audible and VisibleAlarm:“Beep-beep-beep” alarm sound, alarm symbol flashing, pressALkey to turn on/off and setting ❤Interference Signal Recognition: “Beep-beep-beep”indicator,NOISEsymbol blinking ❤Protection Level:Double insulation ❤Structural Feature: Clamp CT ❤Shift:Automatic shift ❤External Magnetic Field:＜40A/m ❤External Electrical Field:＜1V/m ❤Single Measurement Time:0.5 second ❤Resistance Measurement Frequency: ＞1KHz ❤Measured Current Frequency:50/60Hz Automatic ❤Low Battery Voltage Indicator:When the battery voltage is lower than 5.3V, the low battery voltage symbol is displayed ❤Storage Full Indication :Storage data full of 99 sets,flashed display "MEM" symbol ❤Over Range Indication: Exceed range indication “OLΩ”, “L0.01” or “OL A” ❤Tester Weight:1160g ❤Tester Dimension:285mm×85mm×56mm ❤Power Supply:4 PCS of LR6 lkaline batteries(Not included)
- Resistance Range 0.01-200Ω；Accuracy:±1%±0.01Ω
- It can measure the integrated value of the grounding body resistance and the grounding lead resistance.
- Data storage function: 99 sets of measurement results can be recorded, saving extra recording time.
- Auto Power-off:Automatically power off after 5 minutes without any operate
- Precision clamp head design: using precision iron core and winding, stable, precise and strong anti-interference.
| Color | BLACK+RED |
|---|---|
| Model | 2023021506 |
| Brand Name | YFYIQI |
| Item Weight | 4 Kilograms |
| Manufacturer | YFYIQI |
| Item Dimensions | 2.36 x 2.36 x 6.3 inches |
| Included Components | Ground Resistance Tester |
